How to Use Voicemod with VMKey in Real Life (IRL)

  • Updated



Bring your favorite Voicemod voices and effects to cosplay events, live performances or street shows!

With the VMKey device and a handful of portable accessories, you can run Voicemod Mobile anywhere—no PC required!


This guide walks you through a simple, reliable setup using standard audio splitters, a USB-C power/audio adapter, a rechargeable speaker, and a battery pack.

Unlock the full power of Voicemod anywhere!

Gear Checklist

Note: You can substitute any equivalent parts that provide the same connectors and power ratings. These are the ones we’ve tested and know won’t ghost you!

Components Name & Function

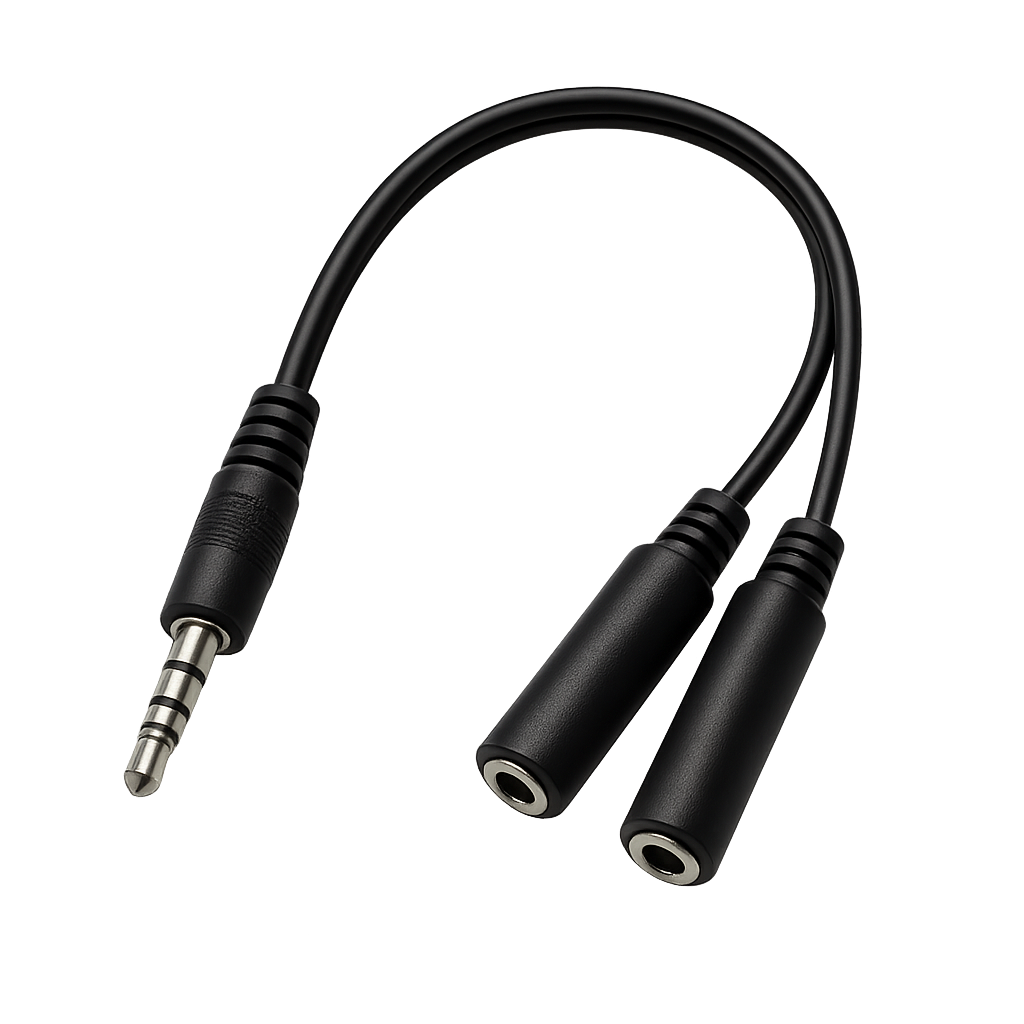

3.5 mm Audio/Mic Splitter

1× 3.5 mm TRRS male → 2× 3.5 mm TRS female (headphones + mic)

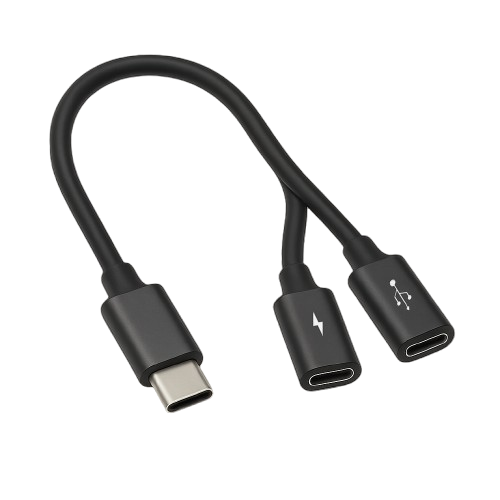

USB-C 2-in-1 Adapter

Audio output + PD 60 W charging

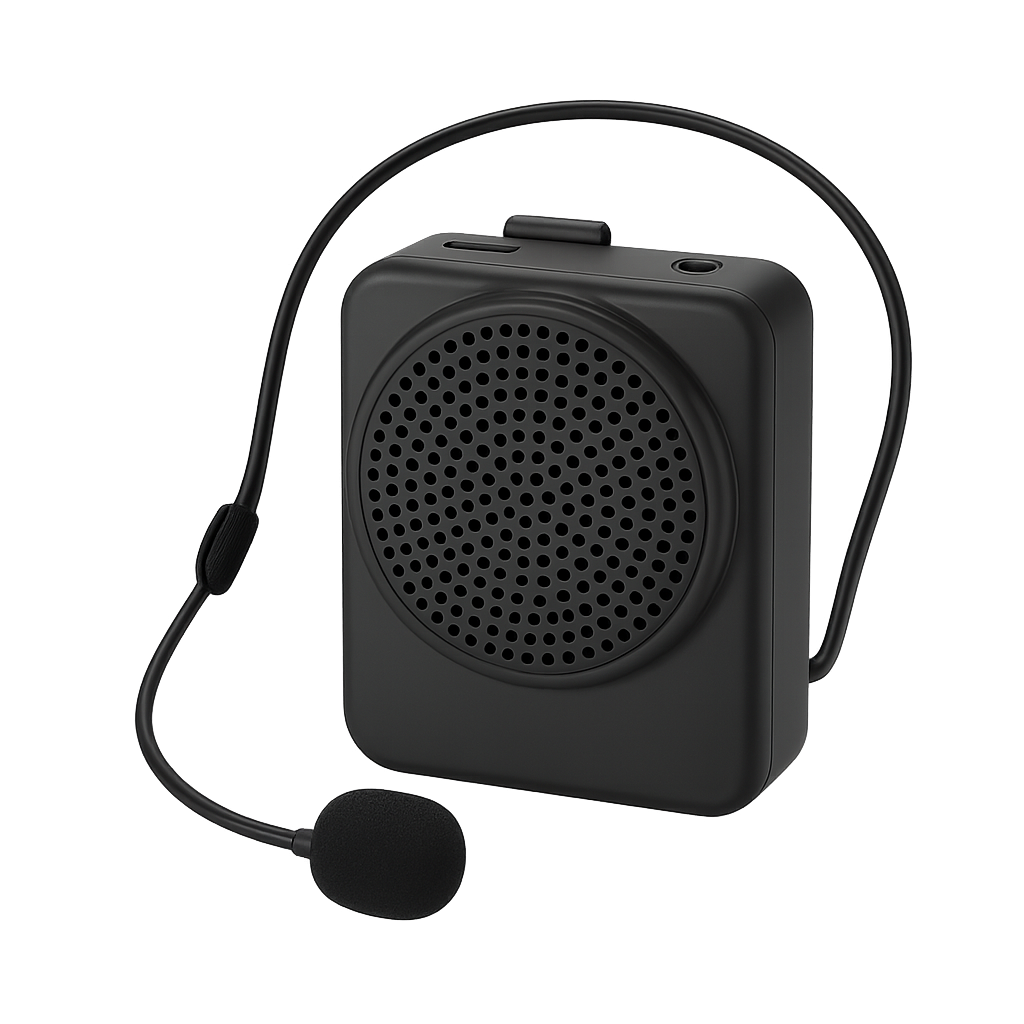

Portable Speaker / Voice Amplifier

Built-in rechargeable battery + 3.5 mm Aux in

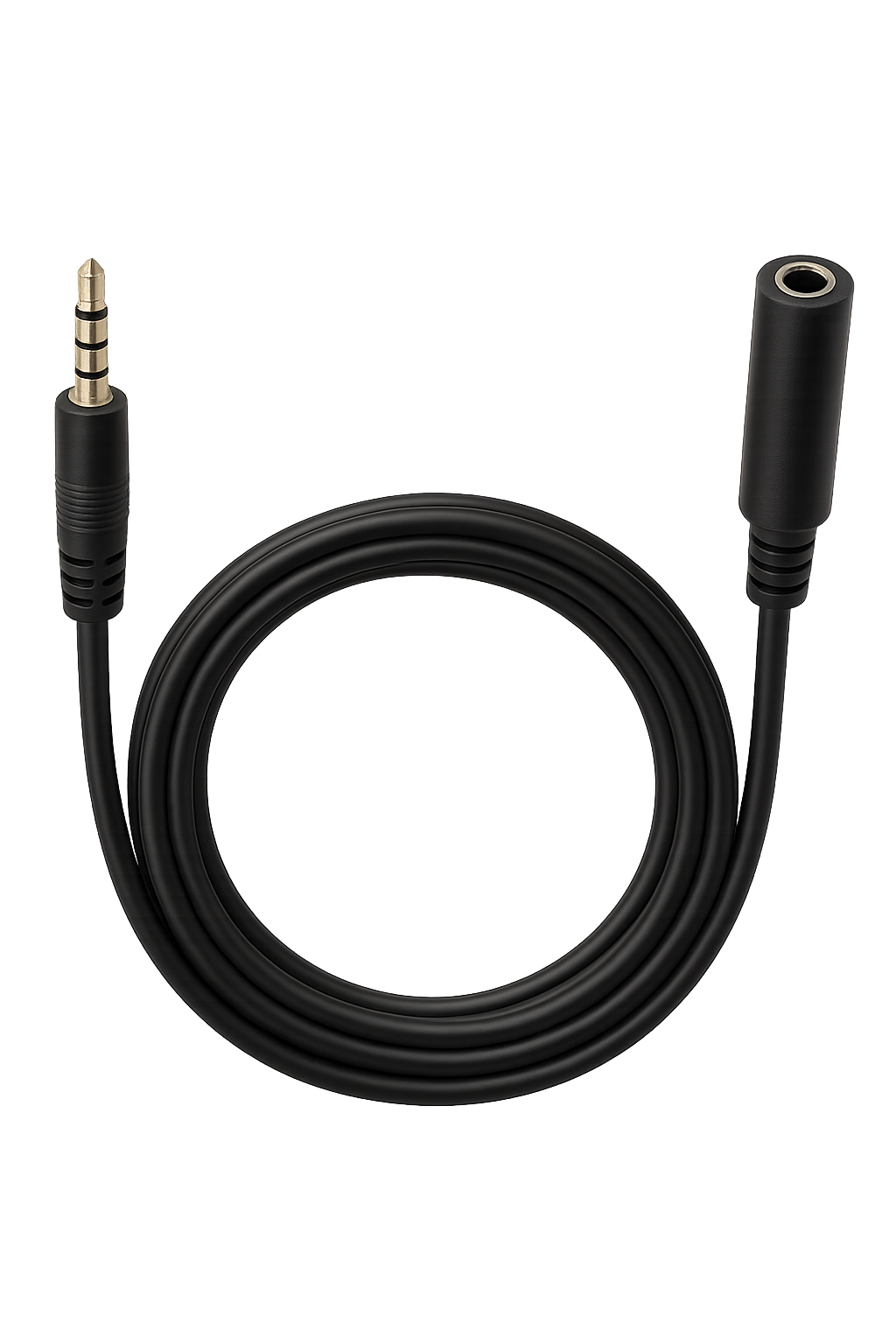

(Optional) TRRS Extension Cable
3.5 mm male→female with mic ring—for routing under costume

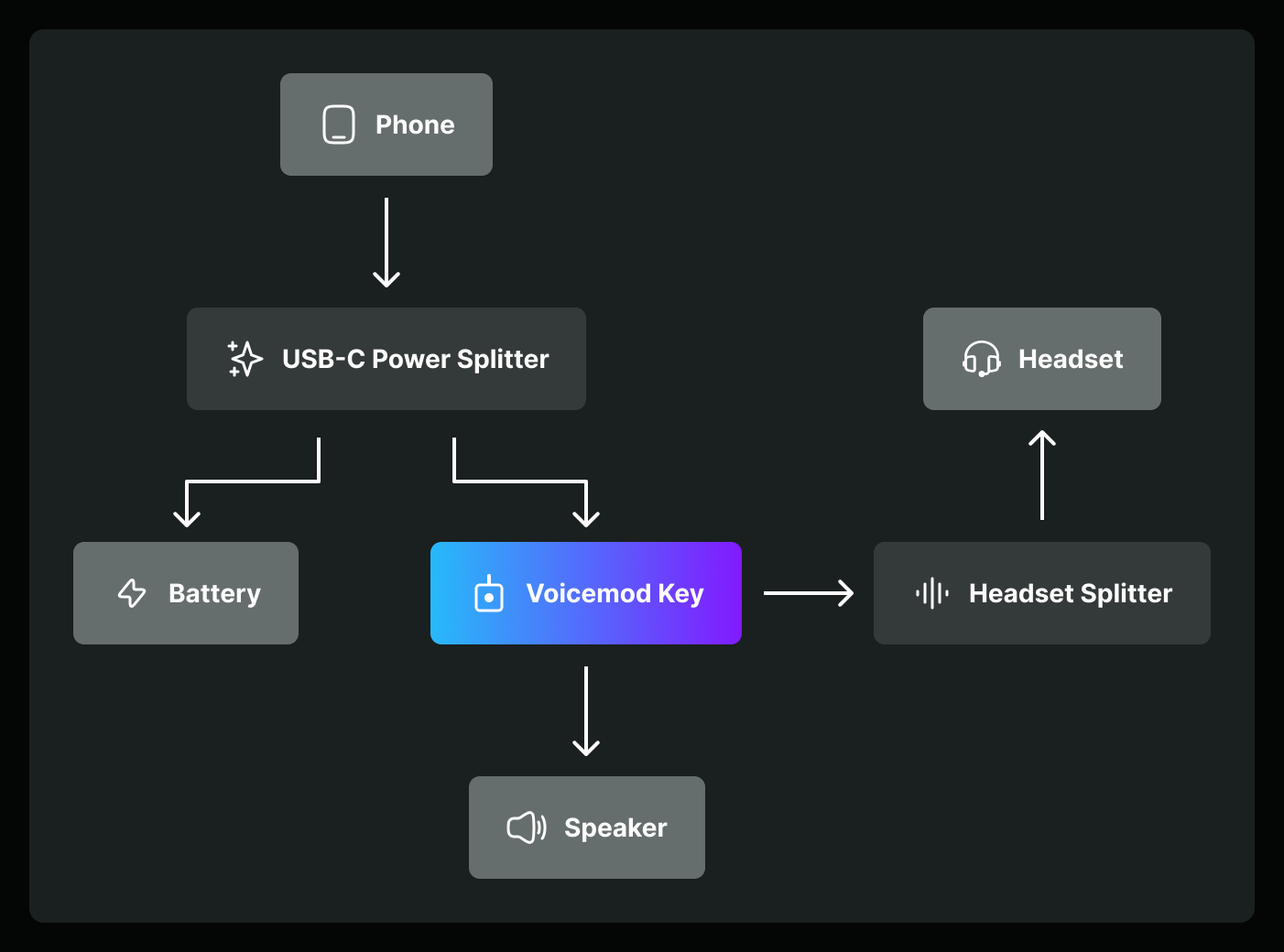

Wiring Diagram

  1. Phone → USB-C Adapter/Splitter

  2. VMKey → USB-C adapter “Data” port

  3. (Optional) External Battery → USB-C adapter “PD” port

  4. Speaker → VMKey “Controller” port

  5. Audio/Mic Splitter → VMKey “Headset” port

  6. Microphone (Headset) → (Optional) Extension cable, if needed → Audio/Mic Splitter Mic port

  7. (Optional) In-ear monitors → (Optional) Extension cable 2, if needed → Audio/Mic Splitter headphones port

Step-by-Step Setup

  1. Connect Voicemod Key to your USB-C Splitter.

  2. Connect the speaker to the VMKey.

    • Plug the speaker’s 3.5 mm cable into the VMKey’s Controller jack. This delivers processed audio directly to your amplifier.

  3. Connect the headset splitter to the Voicemod Key's headset port.

    • Insert the 3.5 mm TRRS splitter into the VMKey’s Headset jack.

    • The VMKey expects a TRRS input; the splitter aligns the mic ring correctly so your microphone will be recognized.

  4. Connect your microphone

    • Plug your mic into the splitter’s microphone port.

    • (Optional) Use the TRRS extension cable to run the mic under your costume or helmet.

  5. Power and phone connection

    • Connect the VMKey to your phone via the USB-C 2-in-1 adapter:

      • “Data” port → VMKey

      • “PD” port → (Optional) Battery pack

    • Finally, plug the adapter into your phone’s USB-C port. This keeps your device charged while running Voicemod Mobile.

  6. Power on & configure

    • Turn on your battery pack and speaker.

    • Plug the splitter into your Phone.
    • VMKey should appear as the audio interface—select it, choose your voice preset, and adjust volumes as desired.

Tips & Recommendations

  • High-quality cables: Opt for braided, gold-plated connectors to reduce noise and improve durability.

  • Secure mounting: Ensure to properly fasten your VMKey, splitters, speaker and battery.

  • Strain relief: Protect connector joints with heat-shrink tubing or gaffer’s tape.

  • (Optional) Self-monitoring: If you need to hear yourself, add lightweight in-ear monitors to the headphone port of the splitter.

🎥 Community Spotlight

Huge thanks to Lucas "MstrLargo" Hylton for this killer VMKey tutorial! This is what the Voicemod Community can do with Voicemod and VMKey:

With this portable rig, you’ll unlock the full power of Voicemod in any live scenario—on stage, on the street or at your next Cosplay convention.

Experiment with different mics, speakers and mounting methods to perfect your IRL voice-modulation setup. Enjoy transforming your voice wherever creativity calls!
