How to set up Voicemod with Hercules Stream 100

  • Updated

Do you own a Hercules Stream 100 and want to enhance your audio experience with Voicemod? You’re in the right place!

Integrating Voicemod with the Hercules Stream 100 can significantly enhance your setup.

Follow this guide to configure your device and fully utilize Voicemod’s features.

Step 1: Preparation

  1. Download and install Voicemod: Visit the official Voicemod website and download the latest version compatible with your operating system. Follow this installation guide if needed.
  2. Connect Hercules Stream 100: Plug in the device using the provided USB cable.
  3. Hercules Stream Control: Download and Install Hercules Stream Control.

Step 2: Initial Setup in Hercules Stream Control

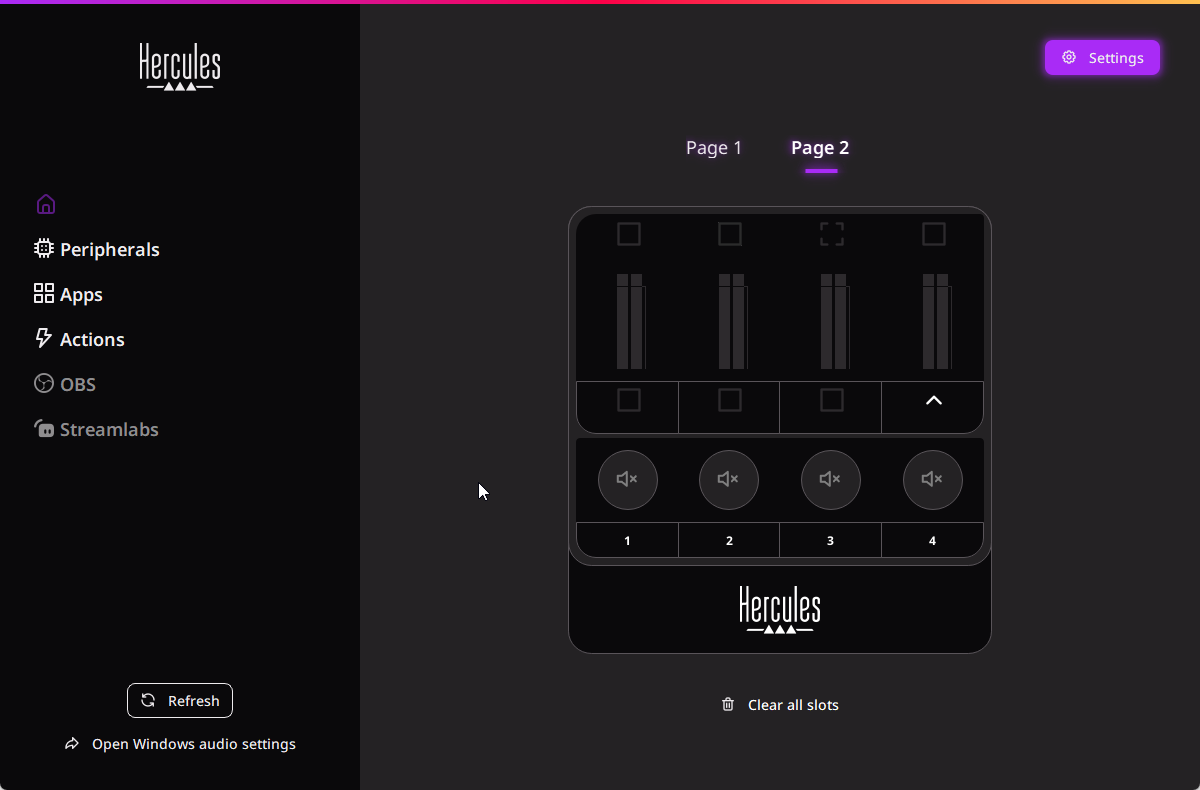

  1. Open the Hercules Stream Control App:
  2. Microphone: Add your physical microphone as an audio input source.

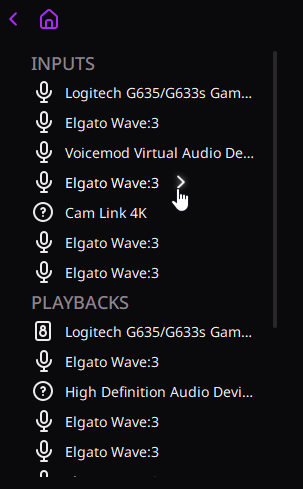

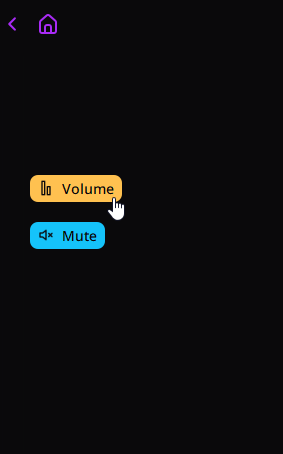

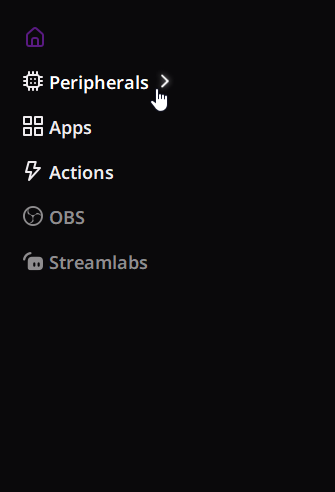

    Click on Peripherals>Inputs>Select your microphone>Volume

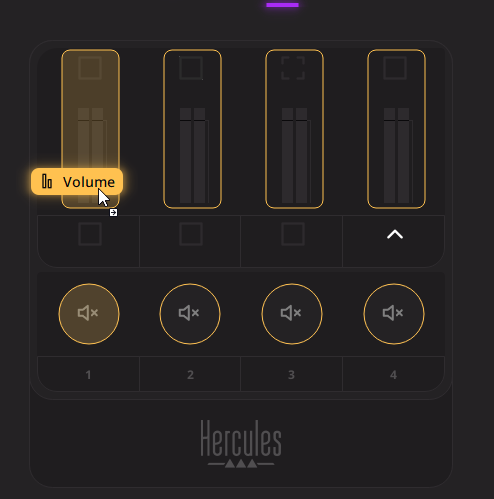

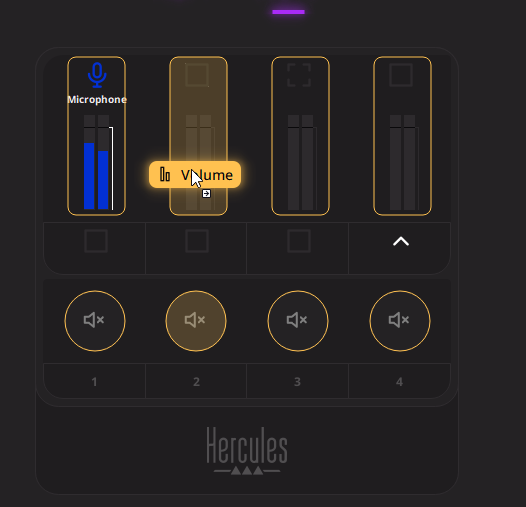

    Click and drag it to the desired place:

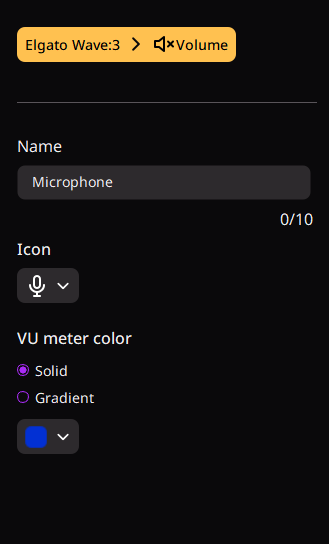

    Change name, icon and color as desired:
  3. Voicemod: Add Voicemod Virtual Audio Device (WDM) as an audio source.

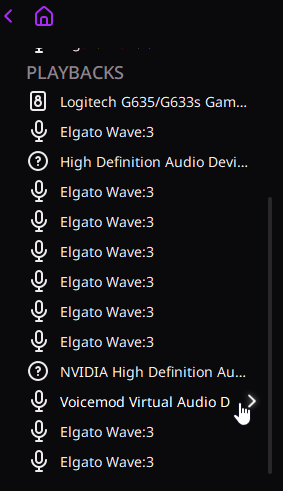

    Click on Peripherals>Playbacks>Select Voicemod Virtual Audio Device (WDM)>Volume

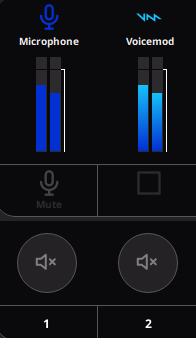

    Click and drag it to the desired place:

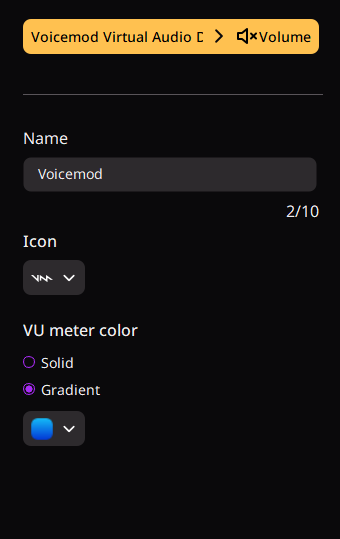

    Change name, icon and color as desired:

  4. Add a Mute your microphone toggle:

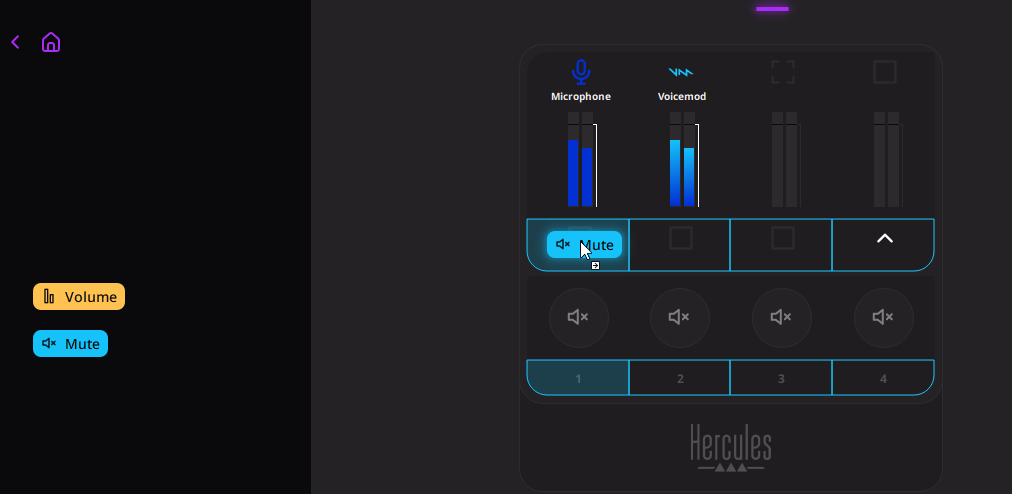

    Select your Microphone input again and choose Mute button. Drag and drop it to the key you want:

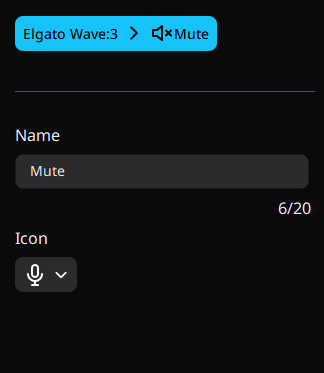

    Change key name and Icon:

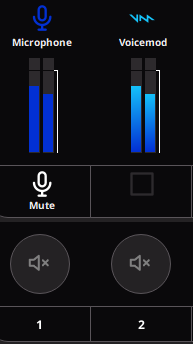

    Toggle to mute / unmute your mic input sound!

  5. Control your audio:
    Control you audio levels (Mic input and Voicemod output) with your Hercules Stream 100 knobs!

Step 3: Add Buttons to Change Voices or Play Sounds Using the Voicemod Plugin

Enhance your experience with the Voicemod Plugin for Hercules Stream 200 XLR by assigning dedicated buttons to change your voice or play sound effects instantly. Follow these steps to set up the buttons using the Hercules Stream Control software.

1. Activate the Voicemod Plugin

Before adding buttons, ensure the Voicemod plugin is active:

    • Navigate to the Plugins section.
    • Locate Voicemod Plugin and download it.
    • Enable it.

    • It should appear on your Hercules Stream Control main screen:

2. Add a Button to Change Your Voice

  1. Open Voicemod section.
  2. Drag the "Add a Voice" from the Voicemod Plugin options and drop it on your desired customizable button.
  3. Choose the desired voice by filtering through:
    • Favorites: Quickly select from your pre-saved favorite voices.
    • Custom: Browse voices categorized in your Voicemod soundboards.
    • All voices.
  4. Choose and confirm your selection and save the button assignment.
  5. Click to select your voice in Voicemod!

3. Add a Button to Play a Sound Effect

  1. Open Voicemod section.
  2. Drag the "Add Sounds" from the Voicemod Plugin options and drop it on your desired customizable button.
  3. Choose the desired voice by filtering through:
    • Favorites: Quickly select from your pre-saved favorite voices.
    • All sounds.
      • Filter by Soundboard.
  4. Choose and confirm your selection and save the button assignment.
  5. Click to reproduce your sound in Voicemod!

Troubleshooting

If you encounter any issues, try the following:

  • Restart Devices: Sometimes, a simple restart can resolve connectivity issues.
  • Check Connections: Ensure all cables are securely connected.
  • Update Drivers: Make sure you have the latest drivers installed for the Hercules Stream 100

Need more help? Click HERE
